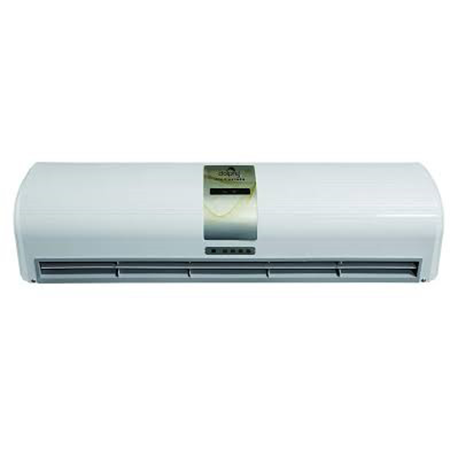

ABS Sensor Air Curtains
| Product Specifications | |||
|---|---|---|---|
| Model No | 101 | 201 | 301 |
| Dimension (mm) | 900 x 230 x 220 | 1200 x 230 x 220 | 1500 x 230 x 220 |
| Max. Air Velocity At Nozzle | 21 m/s | 21 m/s | 21 m/s |
| Noise Level DB | 47 - 52 db | 49 - 54 db | 50 - 55 db |
| Body Material | ABS | ABS | ABS |
| Width Size | 3 Feet | 4 Feet | 5 Feet |
| Inbuilt Sensor | Yes | Yes | Yes |
| No. Of Blowers | 3 | 4 | 5 |
| No. Of Motors | 2 | 2 | 3 |
| HP | 0.56 | 0.76 | 0.95 |
| Voltage | 220V/50Hz | 220V/50Hz | 220V/50Hz |
| Power Wattage | 410W | 560W | 700W |
| Phase | Single | Single | Single |
| RPM (Max/Min) | 2700 / 2100 | 2700 / 2100 | 2700 / 2100 |
| Blower Material | ABS | ABS | ABS |
| CFM | 825 | 1100 | 1380 |
| Effective Height | 7-10 Feet | 7-10 Feet | 7-10 Feet |
| Weight Kgs | 15 | 19 | 25 |
