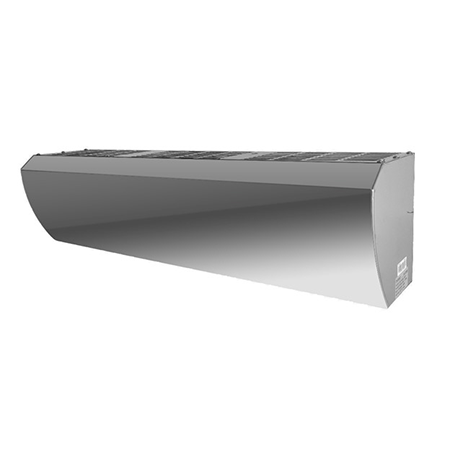

Stainless Steel Air Curtain
|
Model No
|
401
|
501
|
601
|
701
|
| Dimension (mm) |
900 x 230 x 212 |
1200 x 230 x 212 |
1500 x 230 x 212 |
1800 x 230 x 212 |
| Max. Air Velocity At Nozzle |
21 m/s |
21 m/s |
21 m/s |
21 m/s |
| Noise Level DB |
50 - 70 db |
50 - 70 db |
50 - 70 db |
50 - 70 db |
| Body Material |
Stainless Steel |
Stainless Steel |
Stainless Steel |
Stainless Steel |
| Width Size |
3 Feet |
4 Feet |
5 Feet |
6 Feet |
| No. Of Blowers |
3 |
4 |
5 |
6 |
| No. Of Motors |
2 |
2 |
3 |
3 |
| HP |
0.56 |
0.76 |
0.95 |
1.12 |
| Voltage |
220V/50Hz |
220V/50Hz |
220V/50Hz |
220V/50Hz |
| Power Wattage |
410W |
560W |
700W |
820W |
| Phase |
Single |
Single |
Single |
Single |
| RPM (Max/Min) |
2700 / 2100 |
2700 / 2100 |
2700 / 2100 |
2700 / 2100 |
| CFM |
825 |
1100 |
1380 |
1490 |
| % Insect / Dust Rejection |
75% |
75% |
75% |
75% |
| Effective Height |
7-10 Feet |
7-10 Feet |
7-10 Feet |
7-10 Feet |
| Weight Kgs |
19 |
22 |
26 |
32 |
